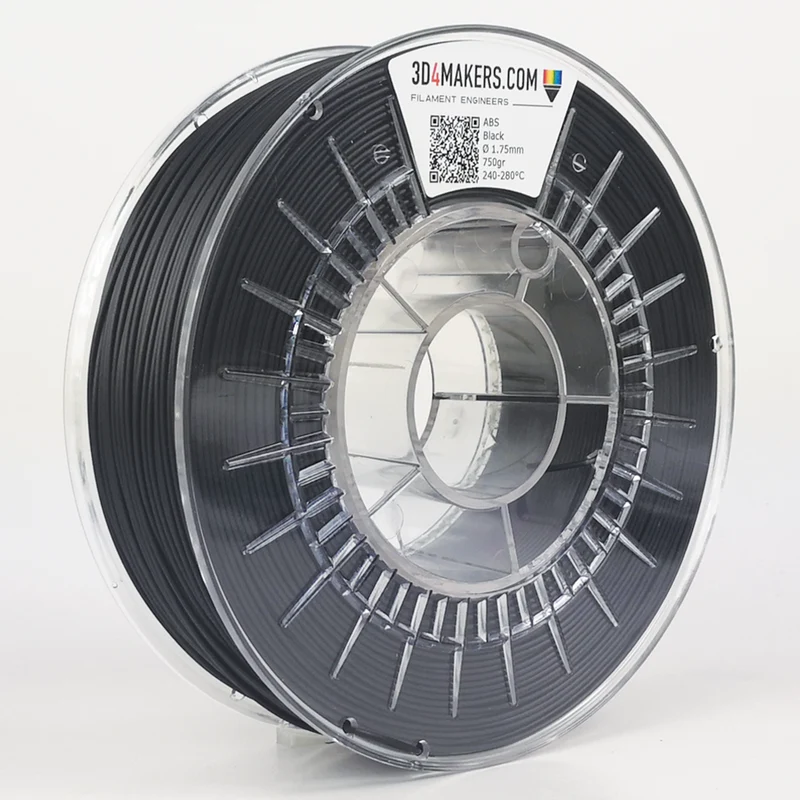

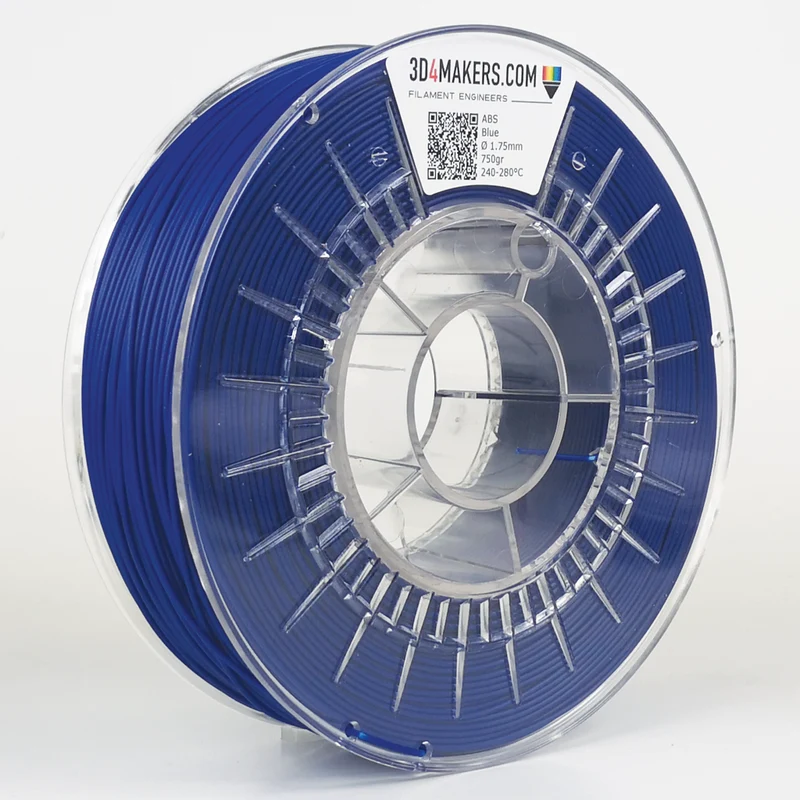

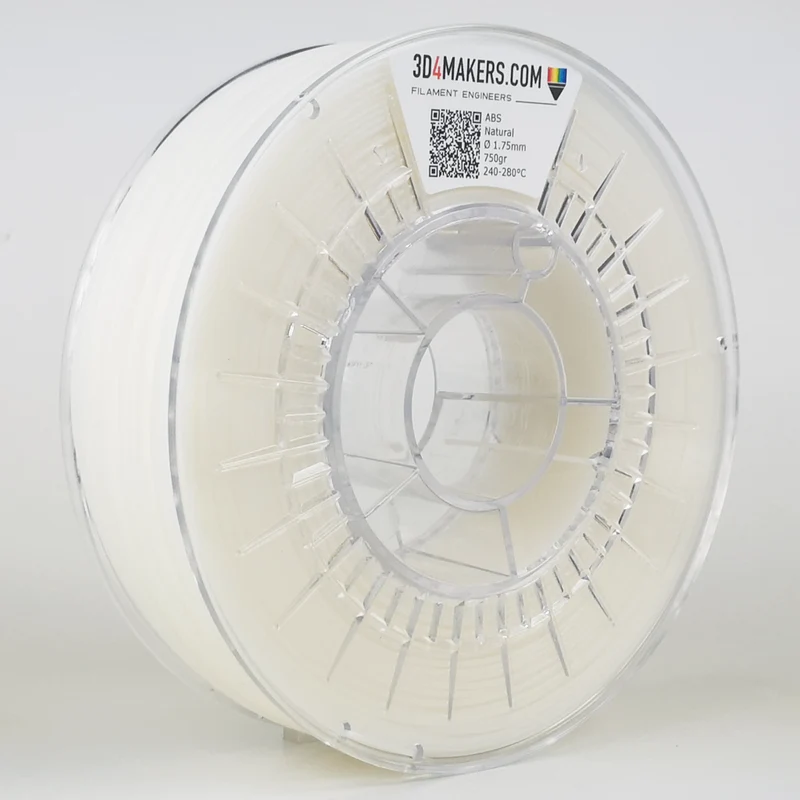

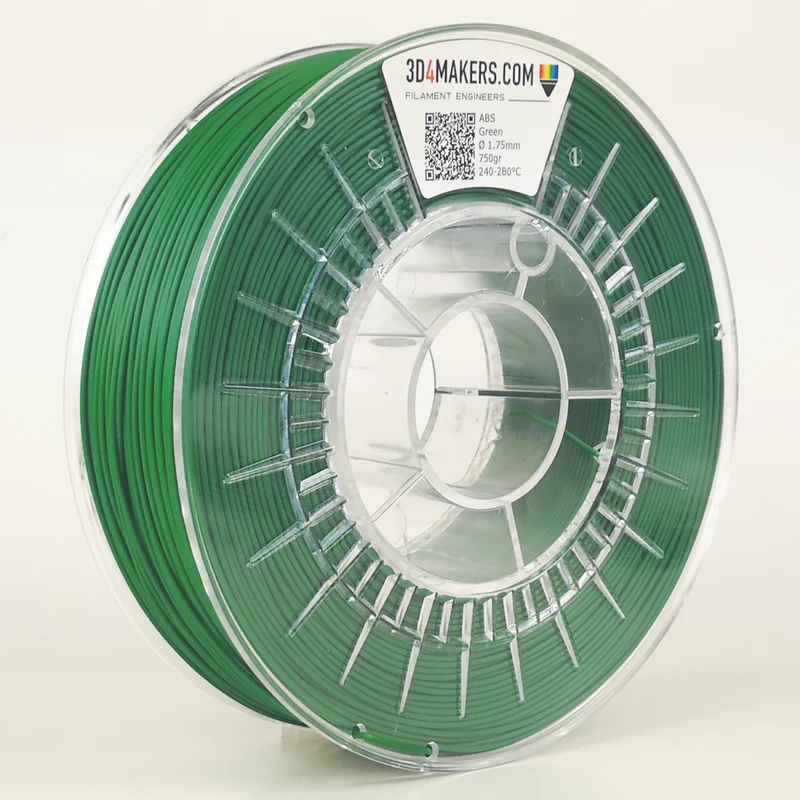

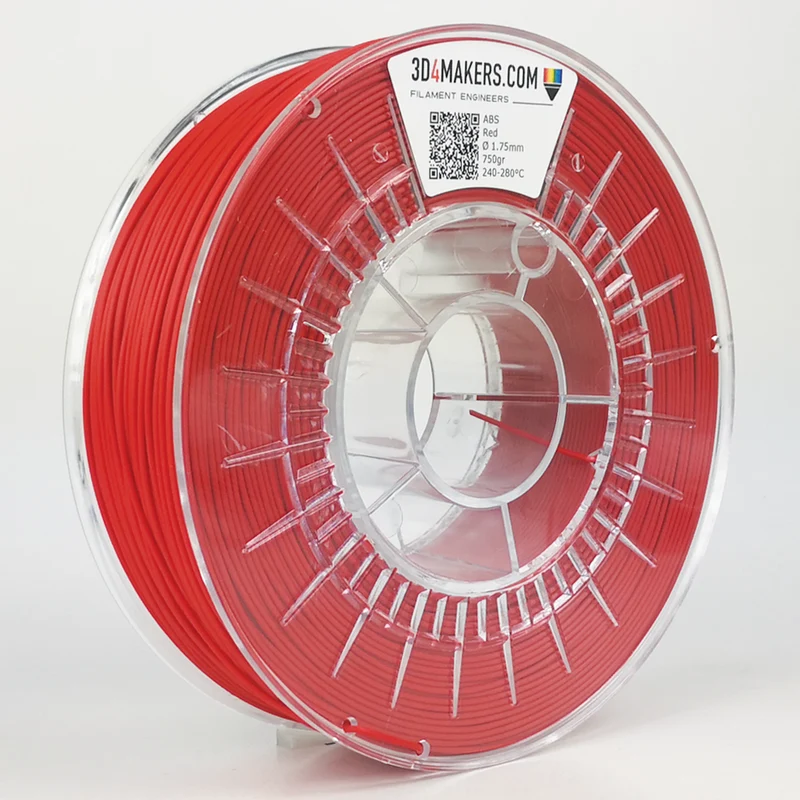

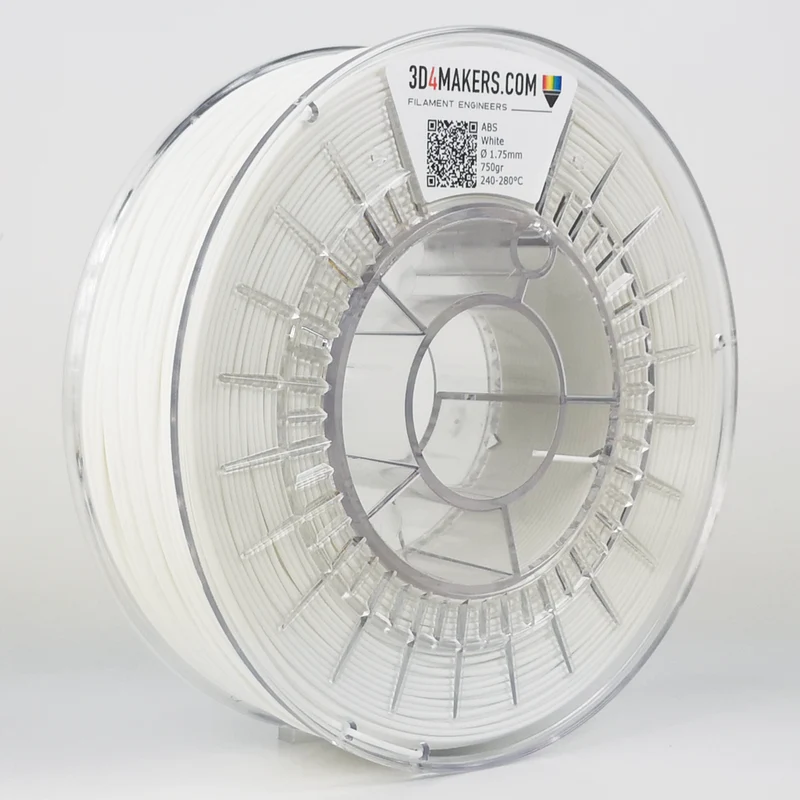

ABS Filament

ABS (Acrylonitrile-Butadiene-Styrene) Filament

ABS (Acrylonitrile butadiene styrene) is one of the most used materials in the plastics industry and gained a lot of popularity within the 3D printing sector due to the ease of processability and great mechanical properties. This ABS filament is a strong  material with a high toughness, high impact resistance and is also light and durable. After the print is done you can easily post-process the object by sanding it or with a acetone vapor installation to get rid of the visible layers and get a injection molded surface quality.

Measurements & Tolerance

Size	Diameter tolerance	Roundness
1,75 mm Filament	+/- 0,05mm	95%
2,85 mm Filament	+/- 0,10mm	95%

Material properties

Description	Value	Test method
Density	1,05 g/cm3	ISO 1183/B
Melt Mass-Flow Rate (MFR) (220ᵒC/10KG)	15 g/10 min	SO 1133
Tensile Stress	45 Mpa	ISO 527-2/50
Flexural Modulus	2300 Mpa	ISO 178
Impact strength Notched Izod	19 Kj/m²	ISO 180/A
Tensile Strain	2,50%	ISO 178

Printer settings

Description	Value
Printer nozzle temperature	240 - 280°C
Heated bed temperature	90 - 110°C
Bed Adhesion	Magigoo Original  on glass or a PEI Sheet

Additional info

To get the best results while printing we advise you to keep the 3D printer in a room where there is hardly any draft and/or temperature fluctuations. Keep the 3D printer out of the sun.

When the 3D printer is not being used it is important to keep the 3D4MAKERS ABS Filament in a bag and stored in a cool (15-25˚C) and dry room away from UV light until it is used again.

*Our ABS Filament is also available in ABS ESD filament and in ABS Kevlar filament.
