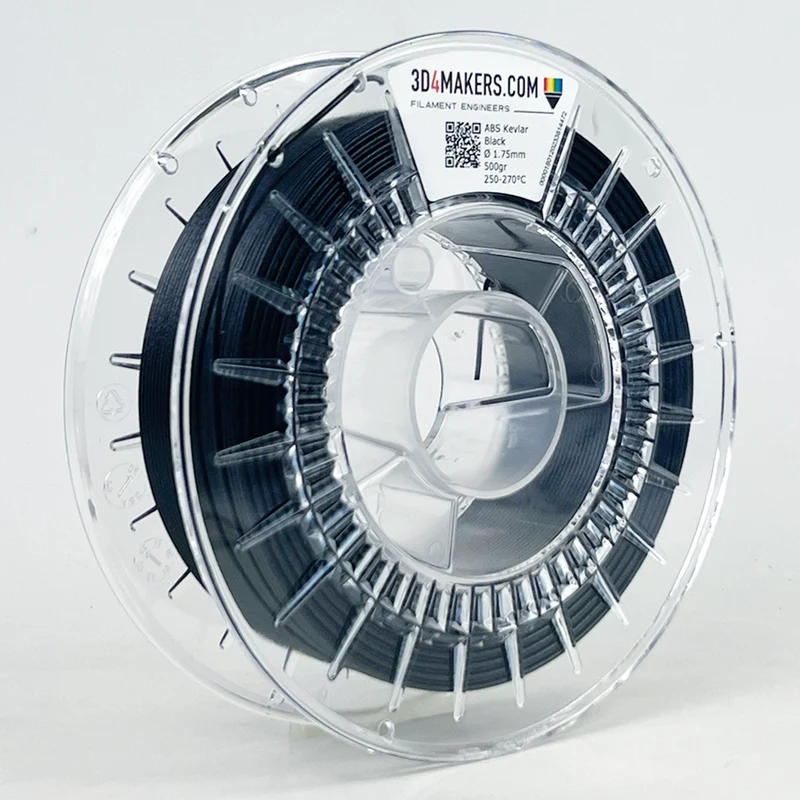

ABS Kevlar Filament

ABS Kevlar Filament

ABS KEVLAR has been designed for 3D printing by a precise formulation of aramid fibers into ABS materials. The aramid fibers assuring dimensional stability ,preventing the printed object to warp and even make the printed object lighter than regular ABS.

• Light weight object. ABS Kevlar density is 1.037 g/cm³ compared to 1,05 g/cm3 for our regular ABS.
• Smooth surface.
• No shrinkage / dimensional stability.
• Low Warping.

ABS Kevlar Material Properties

• Density 1.05 g/cm³
• Tensile Strength at Yield 35 MPa
• Tensile Strength at Break 30 MPa
• Charpy impact strength (unnotched) 14 kJ/m2
• Charpy impact strength (notched) 6.1 kJ/m2
• Elastic modulus (1 mm/min) 2350 MPa
• HDT 0.45 MN/m2, annealed 88°C
• HDT 1.81 MN/m2, annealed 75°C
• VICAT Softening point 95°C

Print Settings

• Print Temperature: 260°C (250-270 °C).
• Bed Temperature: 100°C
• Print Speed: 50 mm/s

TDS

You can find the Techincal data sheet for ABS Kevlar Filament here.

MSDS

You can find the Material Safety Data Sheet for ABS Kevlar Filament here.

 *Our ABS Filament is also available in ABS ESD Filament.
