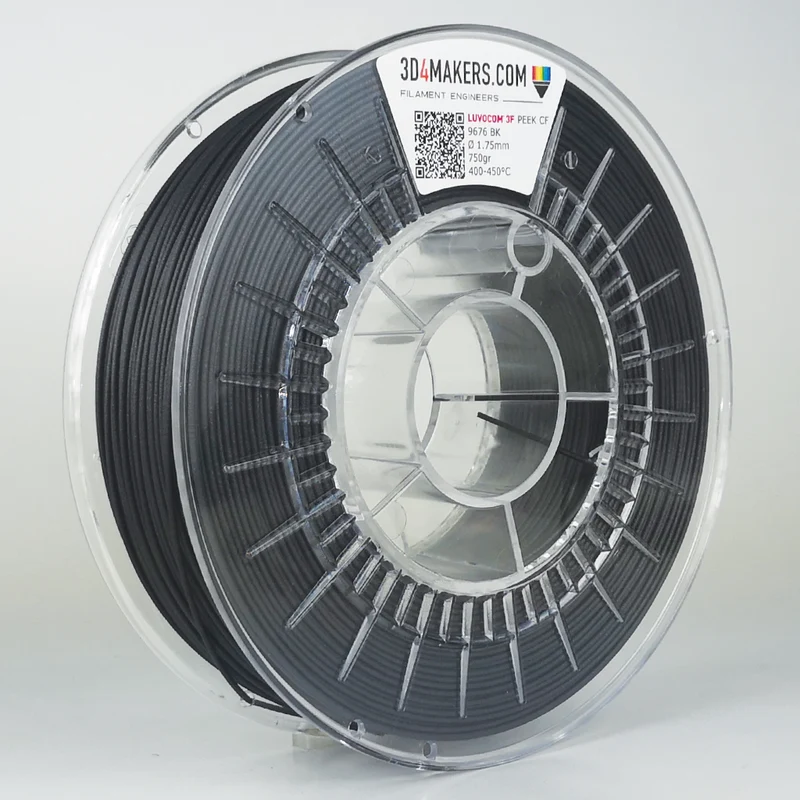

Luvocom® 3F PEEK CF 9676 BK Filament

Luvocom® 3F PEEK CF 9676 BK Filament is a 15% carbon reinforced PEEK (Polyether Ether Ketone) with extraordinary characteristics in terms of mechanical, thermal and chemical resistance. PEEK with carbon is used in demanding industries like oil and gas, automotive, mechanical engineering, aircraft and aerospace technologies. This particular high performance polymer grade is tailored made for the 3D printing industry to match the injection molding strength requirements and focusing on the serial production of end-parts. This 3D4Makers PEEK CF filament features the following properties:

• Excellent mechanical, thermal and chemical performance
• Suitable for demanding industrial applications
• Inherent flame retardant
• High dimensional stability

Material properties

Description	Value	Test method
Density	1,36 g/cm3	ISO 1183
Tensile  strength (at 23°C/50% rh)	126 MPa	ISO 527
Elongation (at 23°C/50% rh)	3,9 %	ISO 527
Modulus of Elasticity   (at 23°C/50% rh)	7,8 GPa	ISO 527
Charpy Impact Strength	66 kJ/m²	eU
Charpy Impact Strength notched	7  kJ/m²
Heat Distortion Temp (HDT A)	280   °C	ISO 75
Continuous Service Temp.	250   °C	UL 746B
Maximum (short term) Use Temp.	280  °C	/
Insulation Resistance (Strip electrode R25)	<10⁹ Ω	DIN/IEC 60167
Surface Resistance	<10⁹ Ω	DIN IEC 60093

Printer recommendations

Description	Value
Printer nozzle temperature	400 - 450°C
Heated bed temperature	110°C +
Print Speed	15 - 30 mm/s
Bed Adhesion	Magigoo HT on glass or a PEI Sheet
Pre drying recommendations	120°C, 4 - 8 hours

To get the best results while printing we advise you to keep the 3D printer in a room where there is hardly any draft and/or temperature fluctuations. When the 3D printer is not being used it is important to keep filament in a bag and stored in a cool, dry and dark place until it is used again.

Documents

	Technical Data Sheet (149 KB)
	Material Safety Data Sheet (250 KB)
