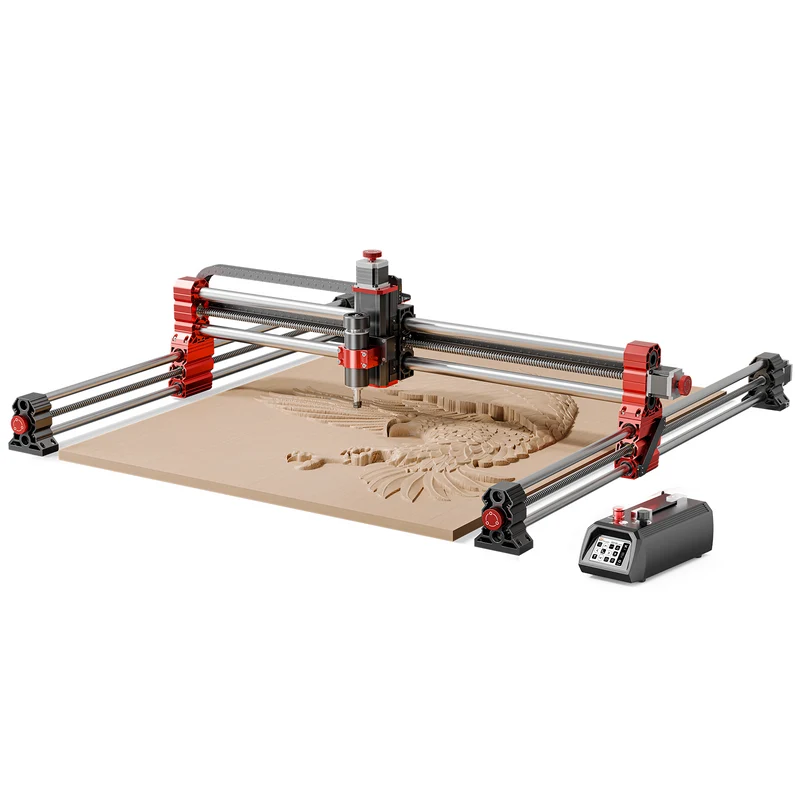

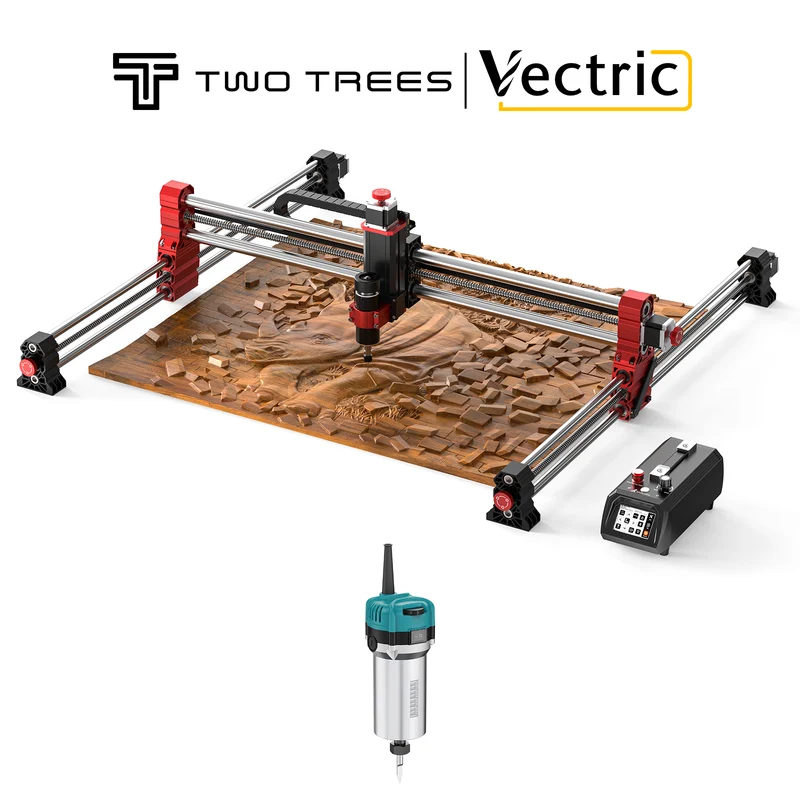

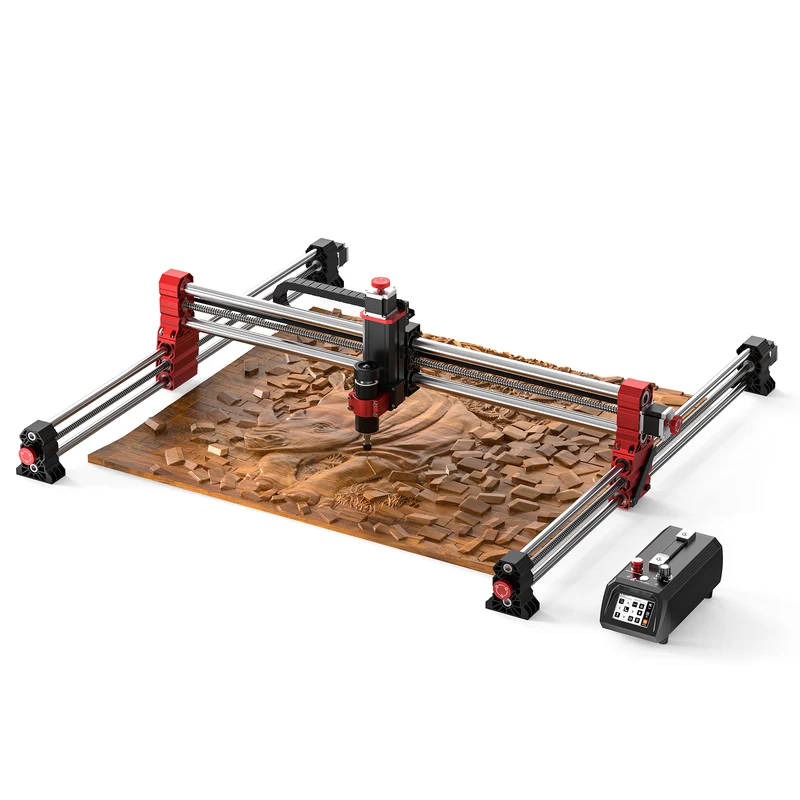

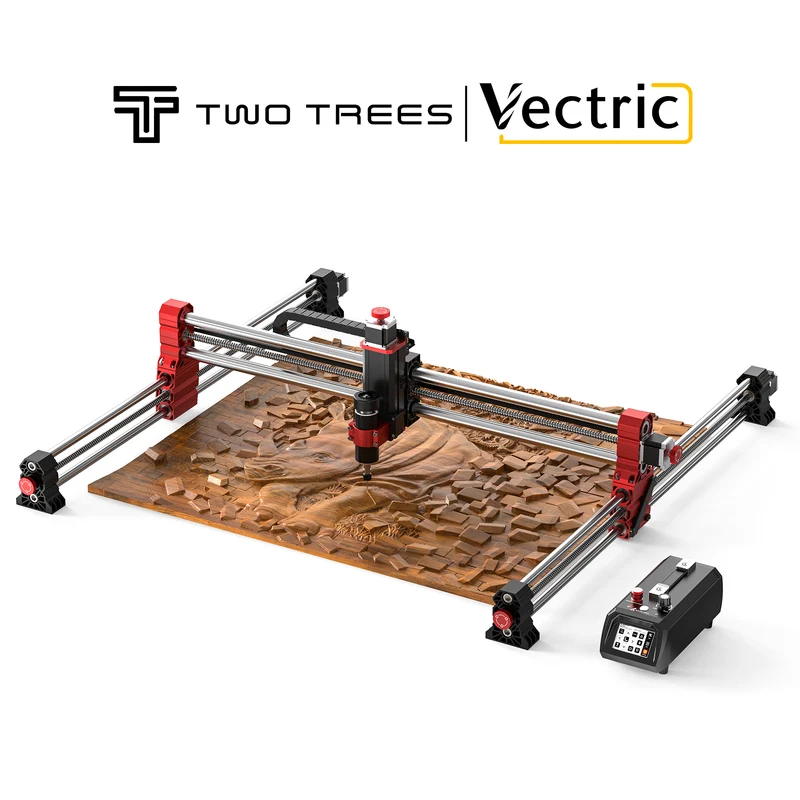

Twotrees TTC-H40 CNC Router Machine

Twotrees TTC-H40 is a large-format industrial CNC router with a 1000×1000×100mm working area, a 500W spindle and 1800mm/min high speed. It supports one-step CNC and laser switching, features a 3.5-inch touchscreen control and enables multi-material processing, making it ideal for large projects, furniture making, signage and commercial batch production.

Key Features

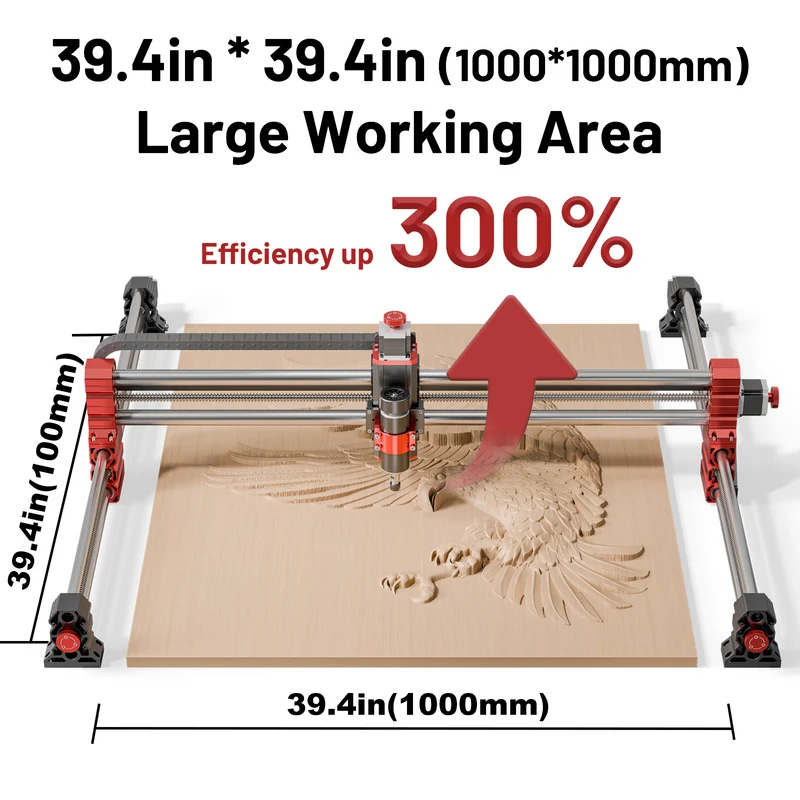

• 1000×1000×100mm Large Area: Handles large panels and batch production with ease
• 500W Spindle: 8000–30000 RPM for powerful cutting on wood, metal and acrylic
• 1800mm/min High Speed: Improves efficiency by up to 300%

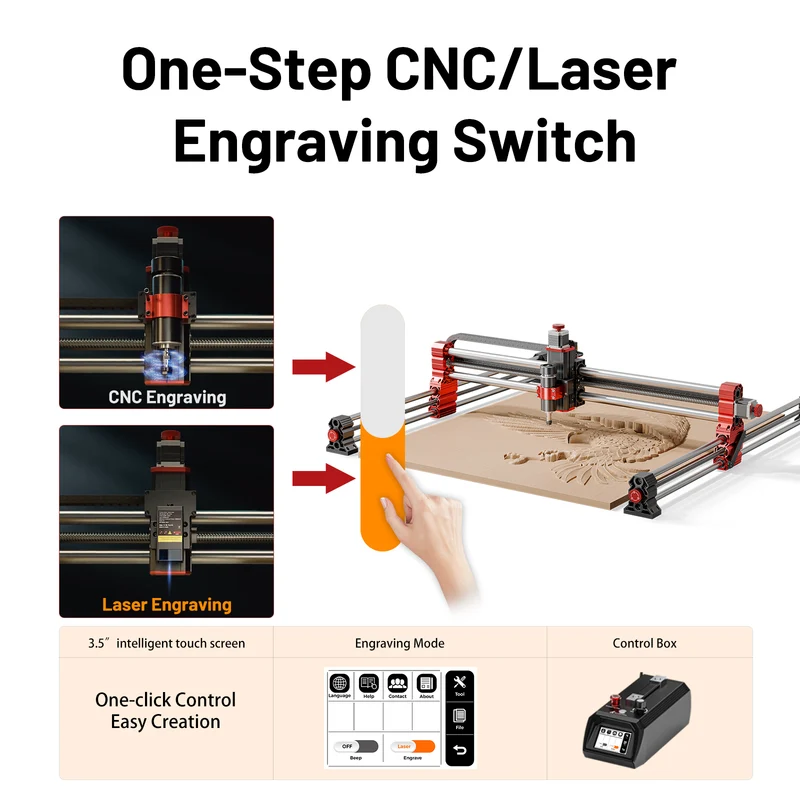

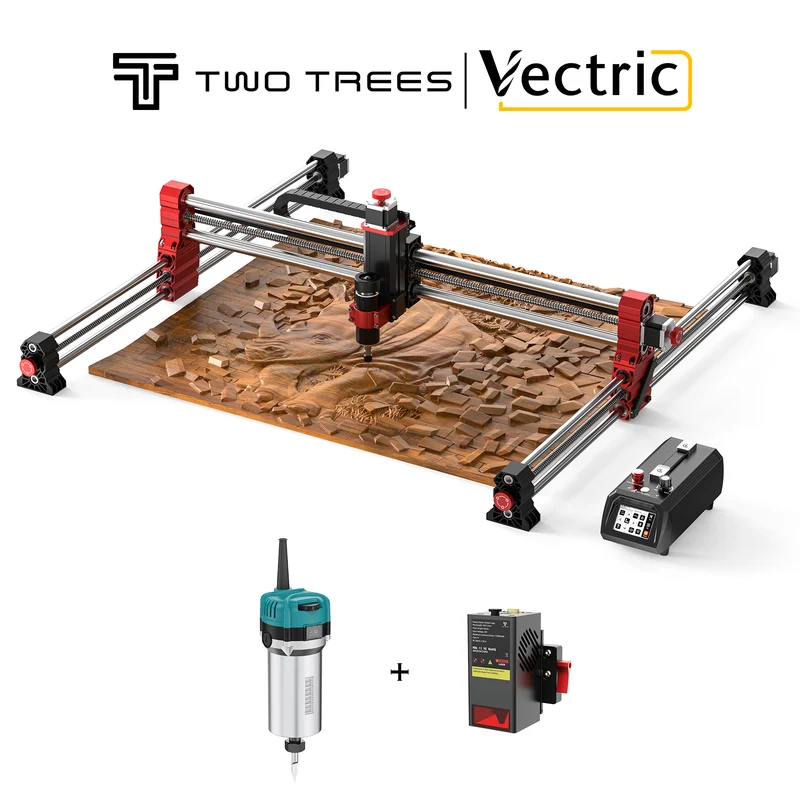

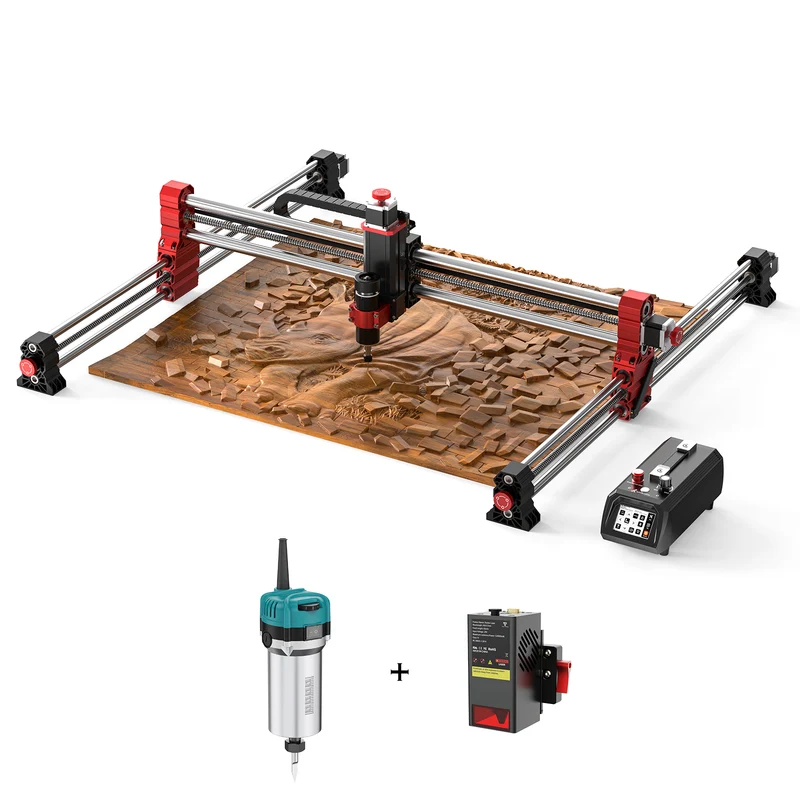

• CNC + Laser Dual Mode: One-click switching for versatile processing
• 3.5-inch Touch Screen: Supports offline control, speed adjustment and emergency stop
• Ball Screws + Linear Guides: Provides high precision, stability and low vibration
• Multi-Material Compatibility: Works with wood, acrylic, aluminum, copper, stainless steel and carbon fiber
• Full Safety Protection: Includes emergency stop, spindle safety and laser protection
• Easy Assembly & Storage: Streamlined design, space-saving when not in use

Applications

• Large furniture and cabinet making
• Signage production and relief engraving
• Woodworking and acrylic processing
• Soft metal engraving and cutting
• Educational training and small-batch manufacturing
• DIY and studio creative projects

Specifications

• Product: Twotrees TTC-H40 CNC Router Machine

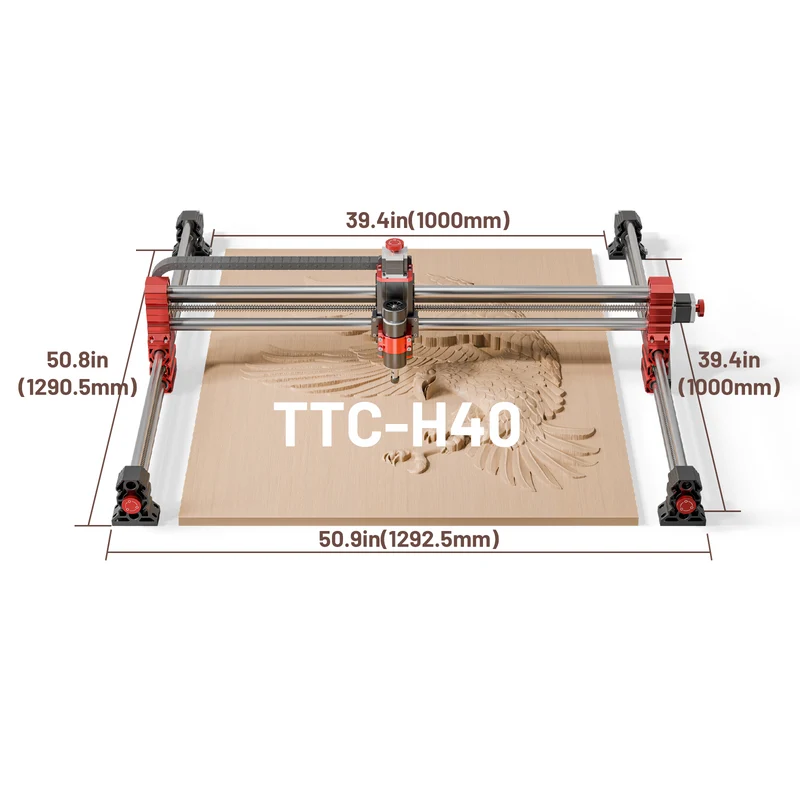

• Working Area: 1000×1000×100mm (39.4" × 39.4" × 4")

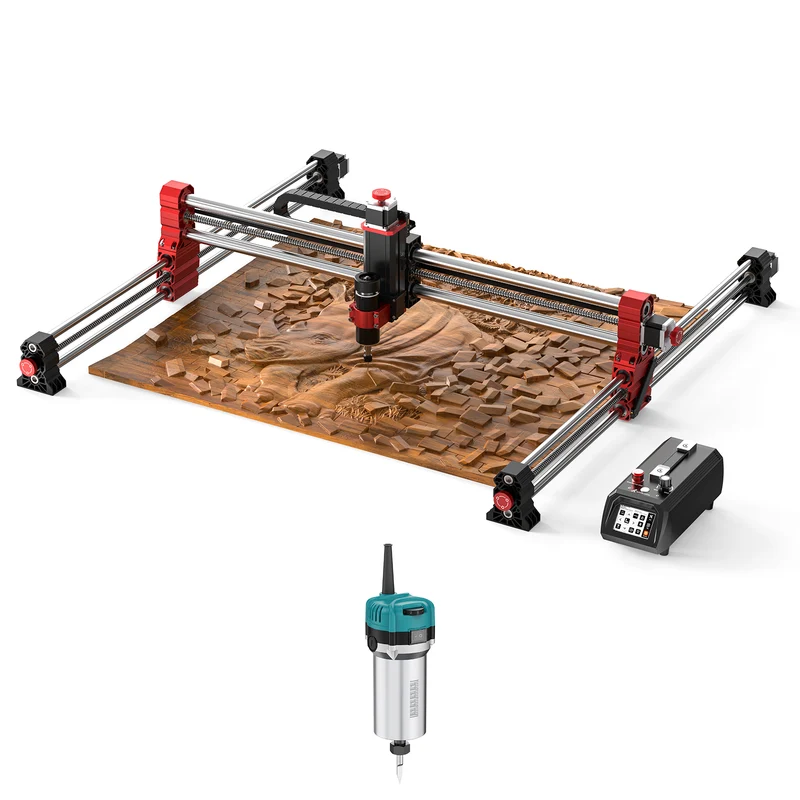

• Spindle Power: 500W (standard); optional 800W / 2000W / 3000W
• Max Speed: 1800mm/min
• Engraving Accuracy: ±0.05mm
• Tool Diameter: 0.5–7mm (ER11 collet)
• Frame Material: Aluminum Alloy
• Control: 3.5-inch resistive touchscreen, USB / TF card
• Software: Vectric, Fusion360, EASEL, Carveco Maker
• System: Windows, macOS, Linux
• Certifications: CE, FCC, RoHS
• Net Weight: 38.3kg
